Standard Rubber Fender
Cone Rubber Fender （TYPE CO）
Features
1.Can endure server shear force
2.Structure is more reasonable and increased deflection, high-energy absorption and longer service life
3.It has excellent life-stability in the Marine Environment.

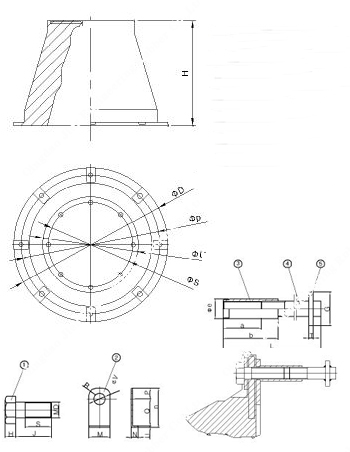

Specification
Type
|
specification |
H (mm) |
D(mm) |
U(mm) |
P(mm) |
S(mm) |
hole |
CO500H |
500 |
800 |
490 |
730 |
425 |
4 |
CO600H |
600 |
960 |
590 |
875 |
515 |
4 |
CO800H |
800 |
1280 |
785 |
1165 |
685 |
6 |
CO1000H |
1000 |
1600 |
980 |
1460 |
855 |
6 |
CO1100H |
1100 |
1760 |
1080 |
1605 |
940 |
8 |
CO1200H |
1200 |
1920 |
1175 |
1750 |
1025 |
8 |
CO1300H |
1300 |
2080 |
1275 |
1900 |
1100 |
8 |
CO1400H |
1400 |
2240 |
1370 |
2040 |
1195 |
8 |
CO1600H |
1600 |
2560 |
1570 |
2335 |
1365 |
8 |
CO1800H |
1800 |
2880 |
1765 |
2625 |
1540 |
10 |
REMARK: Different sizes of CO Type rubber fender can be made according to customers’s request.
|
